RC Touring System

Compatible with the REDOT RC-M and RC-oL series panels

All-in-one & independent solution of panel, touring frame and wind-bracing,

Extreme strong touring frame using mould-pressed carbon backbone.

Panel with touring frame & wind-bracing

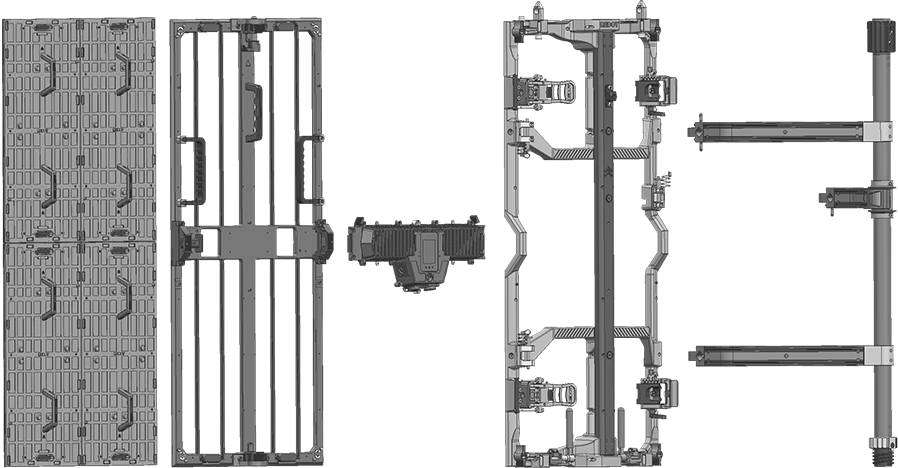

Modular Design

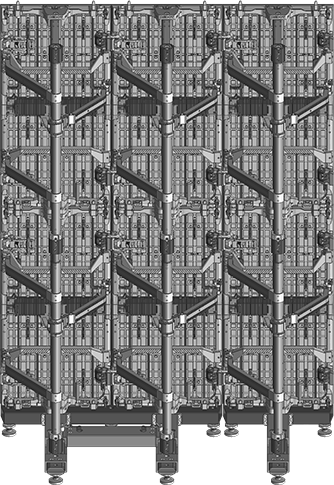

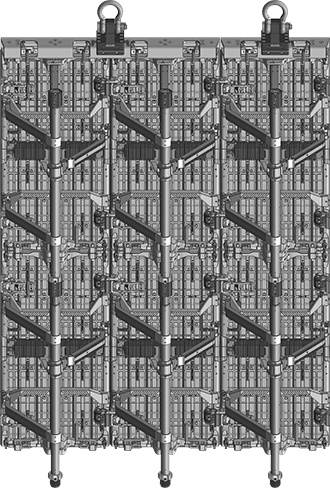

Hanging & Stacking With Wind-bracing

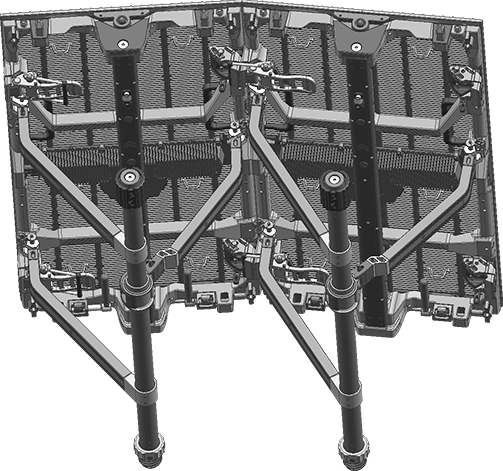

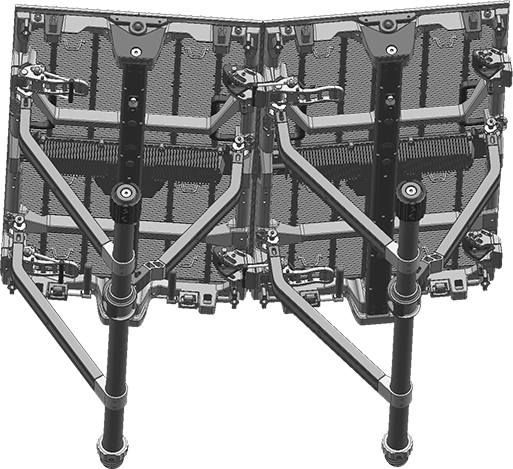

Curved Installation

Measurements

with RC-oL3.9

with RC-M6.9

Panel RC-oL3.9 with touring frame

Size: 499.8x999.8x126.6mm

Weight: 17.6kg
Panel RC-oL3.9 with touring frame & wind-bracing collapsed

Size: 499.8x999.8x137.6mm

Weight: 20.3kg
Panel RC-oL3.9 with touring frame & wind-bracing deployed

Size: 499.8x999.8x467.7mm

Weight: 20.3kg

Panel RC-M6.9 with touring frame

Size: 499.8x999.8x126.2mm

Weight: 15.52kg
Panel RC-M6.9 with touring frame & wind-bracing collapsed

Size: 499.8x999.8x137.2mm

Weight: 18.22kg
Panel RC-M6.9 with touring frame & wind-bracing deployed

Size: 499.8x999.8x467.3mm

Weight: 18.22kg

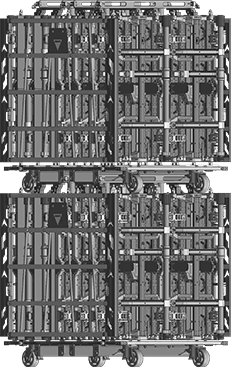

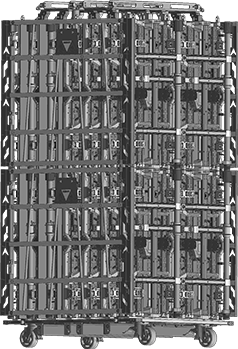

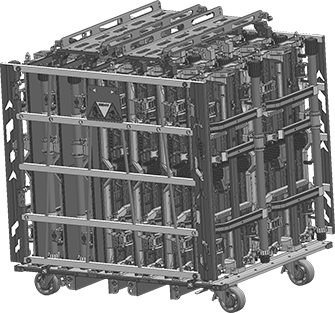

Dolly with 15/30 Panels Including Touring
Frame and Wind-Bracing

Accessories

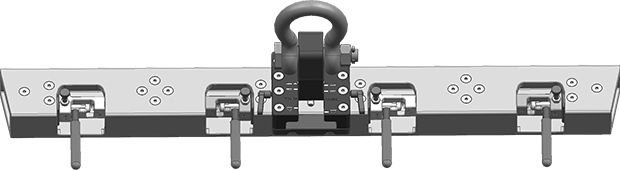

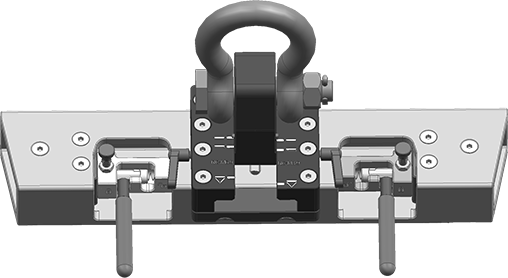

hangging bar

double hanging bar

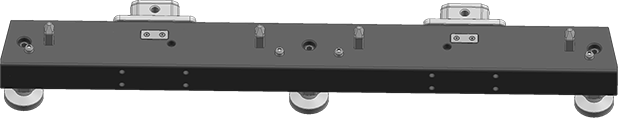

stacking bar

double stacking bar

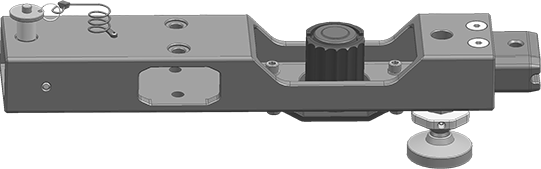

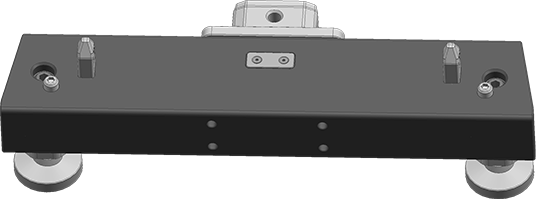

ski

ski connector
