RC-oT3.9
4.5kg
1000x500mm outdoor
Benefits Of Carbon Fiber Panels
  • Lighter
  • Thinner
  • Tougher
  • Faster
8KG
Average weight of 1000*500mm outdoor transparent panel in the market
4.5kg

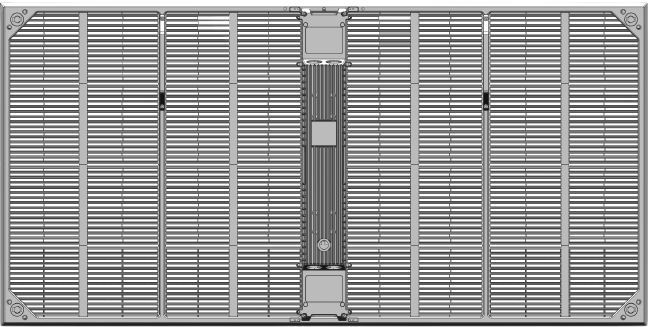

RC-oT3.9 1000*500mm outdoor transparent panel
Ultralight Carbon Fiber
Led Display

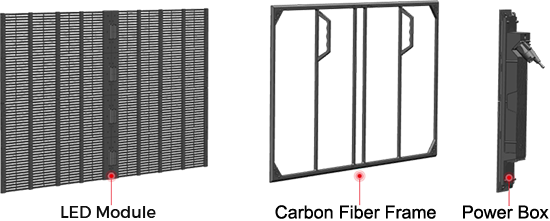

  • Full Carbon Frame
  • Modular Design
  • Curveable
  • 90°Corner
  • Front & Rear Maintenance
  • High transparency
Modular Design
Straight Installation

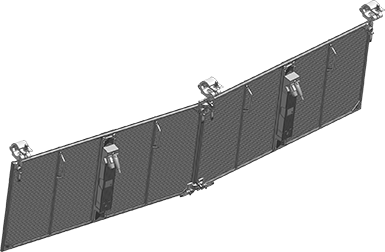

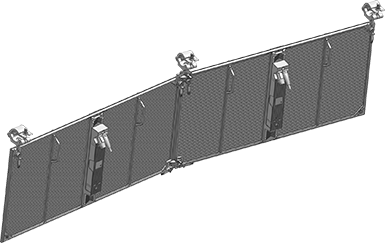

Curved Installation

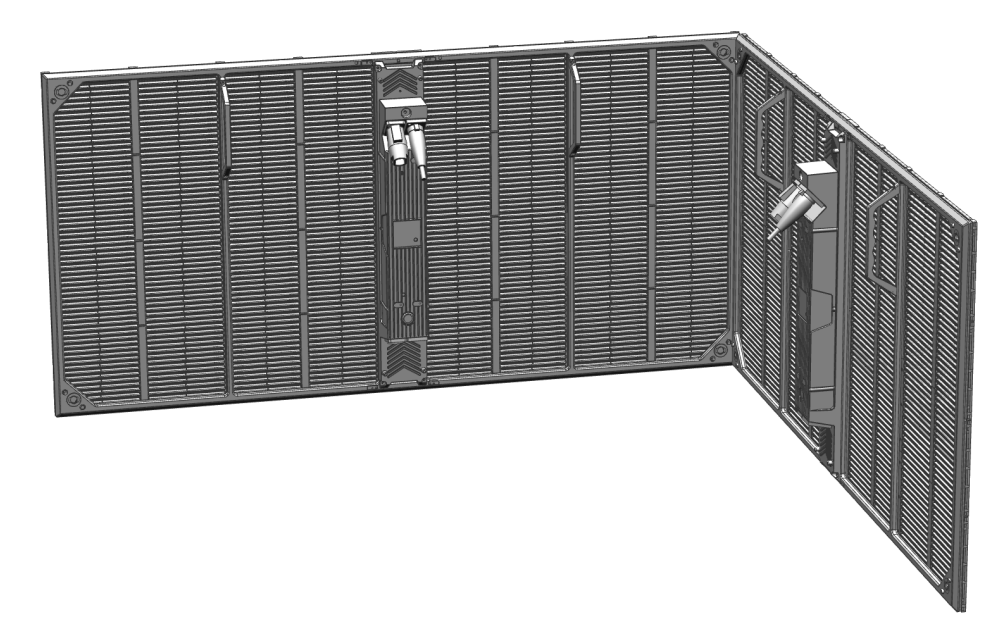

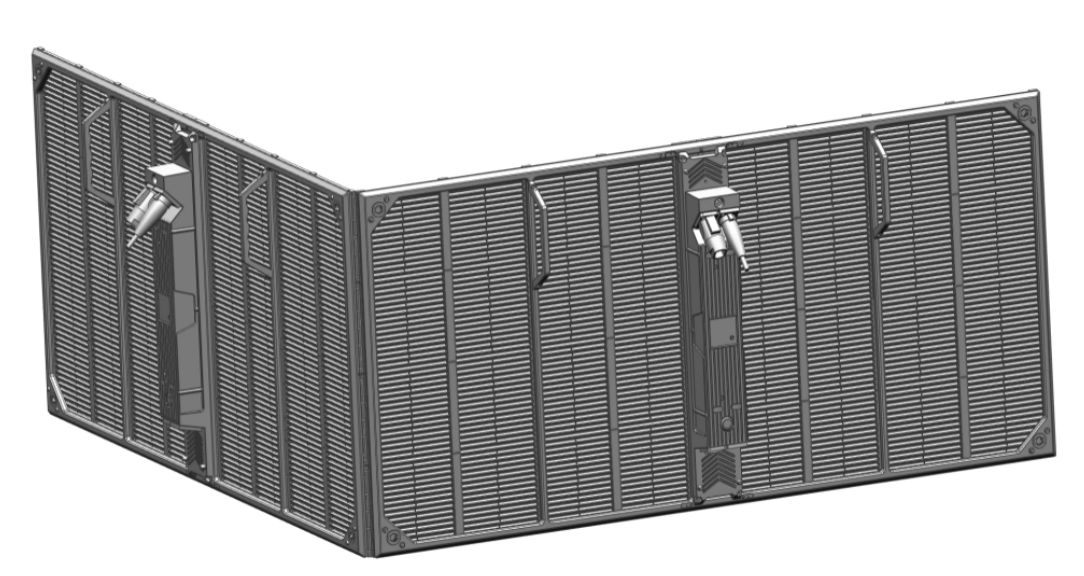

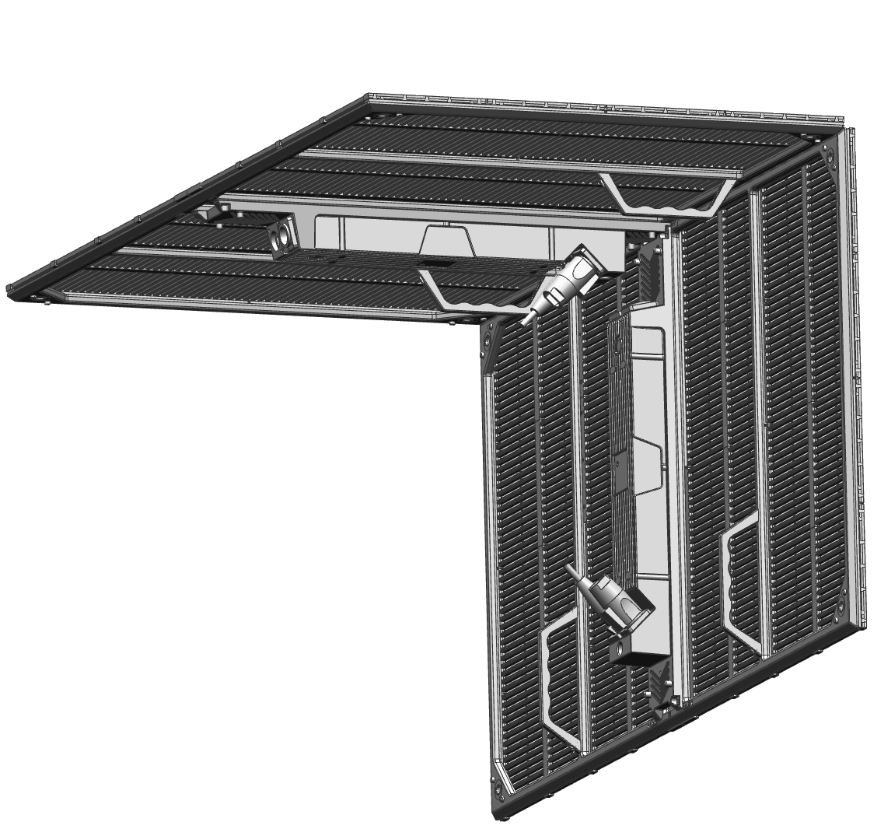

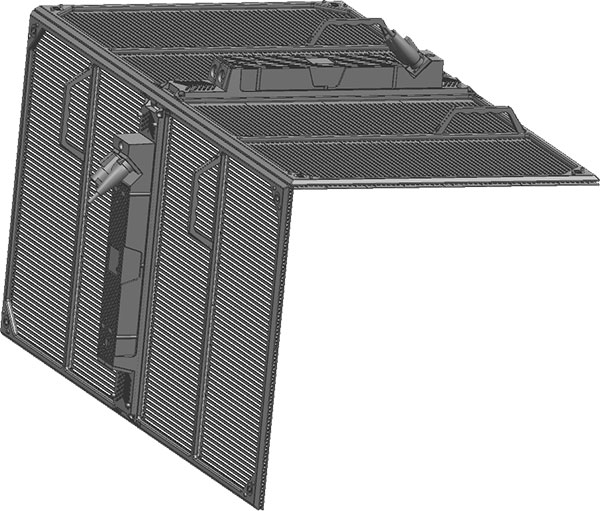

90 degrees Installation
Product parameters
  • LED configuration
  • 3in1 SMD RGB
  • Pixel Pitch
  • 3.9mm(H) 7.8mm(V)
  • Cabinet Resolution
  • 256x64
  • LED Cabinet Size(WxHxD)
  • 1000x5000x69.6mm
  • Max. Brightness
  • 4,000nits
  • Cabinet Material
  • Carbon Fibe
  • Cabinet Weight
  • ≤4.5kg
  • Viewing Angle
  • 140°H/110°V half brightness point
  • Service Access
  • Front/ Rear
  • Curving
  • + 10 or – 10°
  • IP Rate(Front&Rear)
  • IP65
  • Refresh Rate
  • 33%
  • Transparency
  • 3840Hz
  • Power Consumption, Maximum (watts)
  • 360w/cabinet |720W/sqm
  • Power Consumption, Typical (watts)
  • 180w/cabinet |360W/sqm
  • Operating Temp/Humidity
  • -20°C～45°C | -4° to 113° F/ 10%～100%RH
  • Storage Temp/Humidity
  • -40°C～60°C | -40° to 140° F/ 10%～70%RH (non condensing)
  • Storage Temp/Humidity
  • -40°C～60°C | -40° to 140° F/ 10%～70%RH (non condensing)
  • Compliance
  • CE/EMC/LVD
Accessories

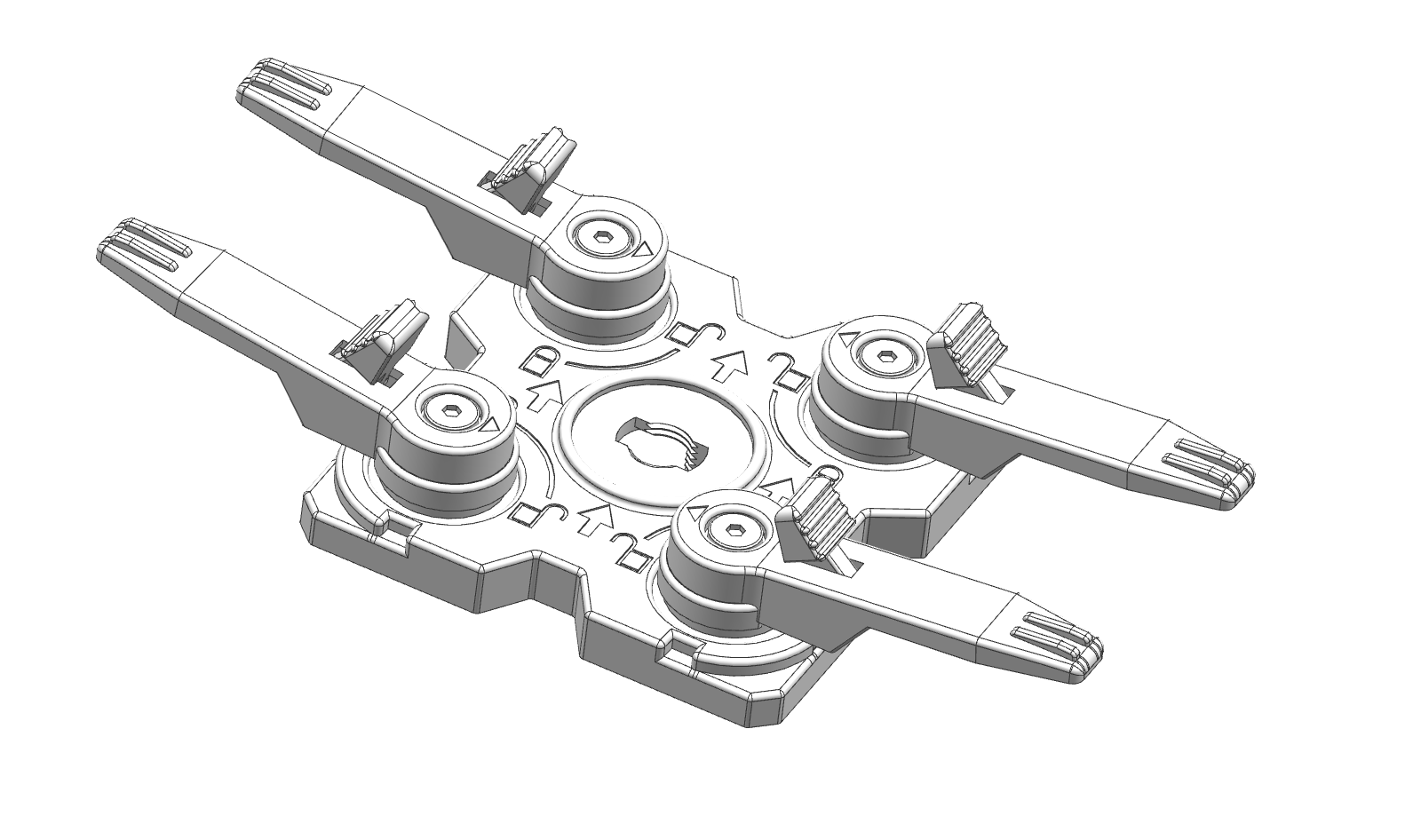

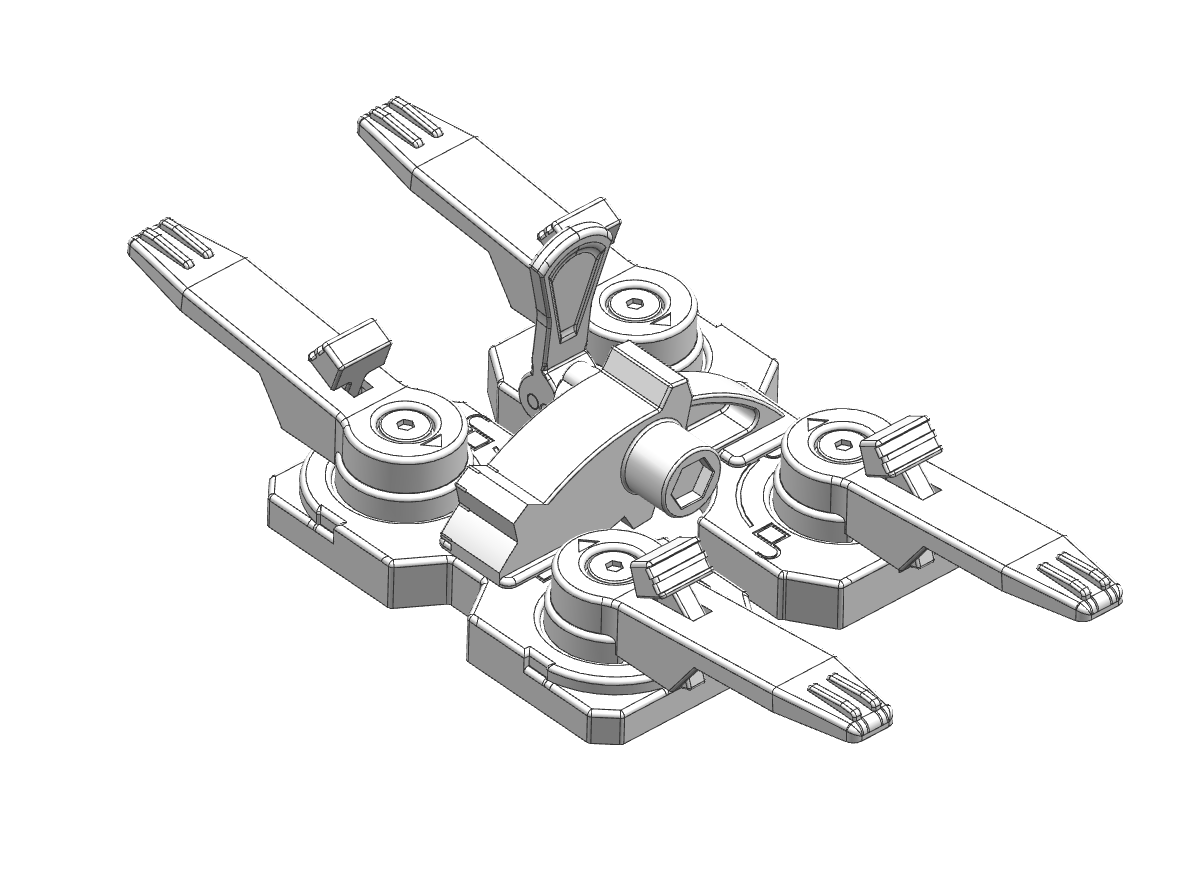

Connection plate

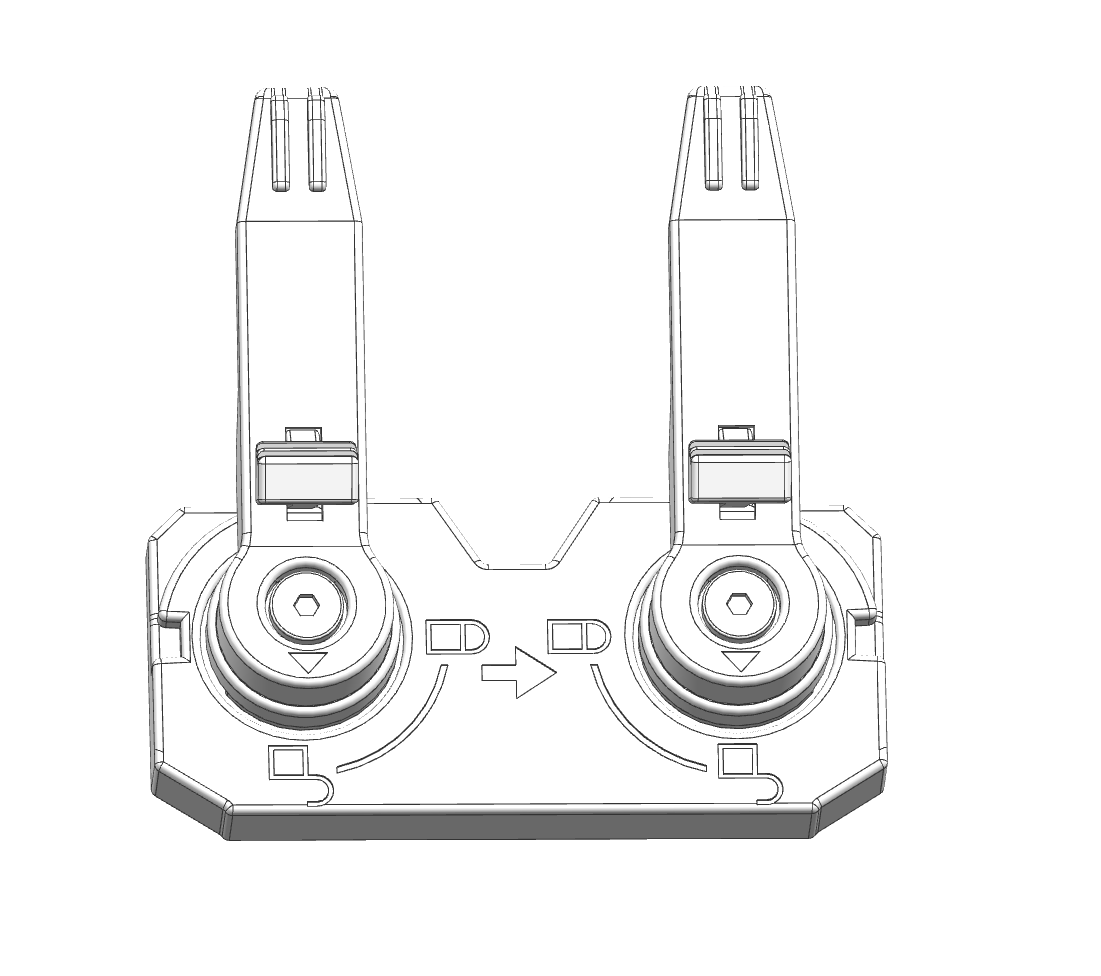

Half connection plate

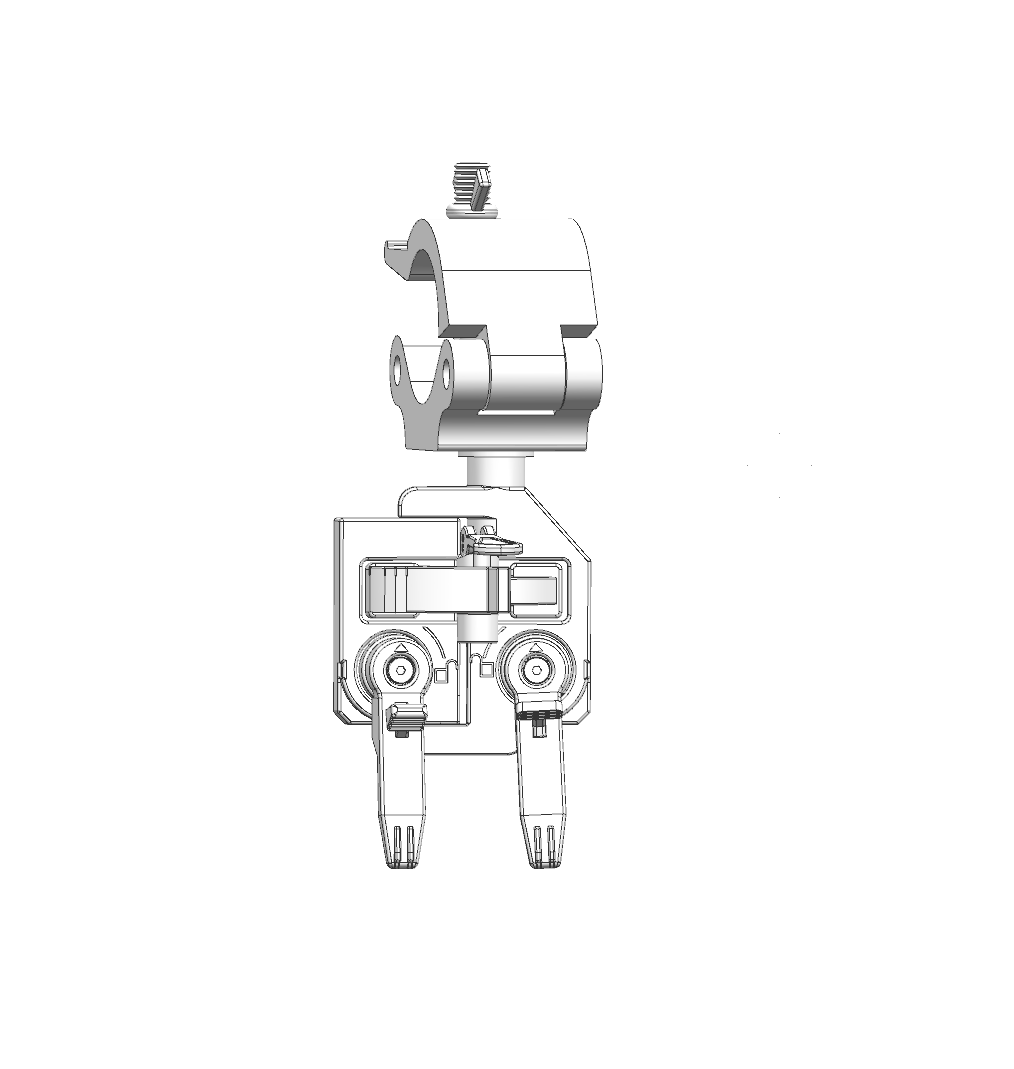

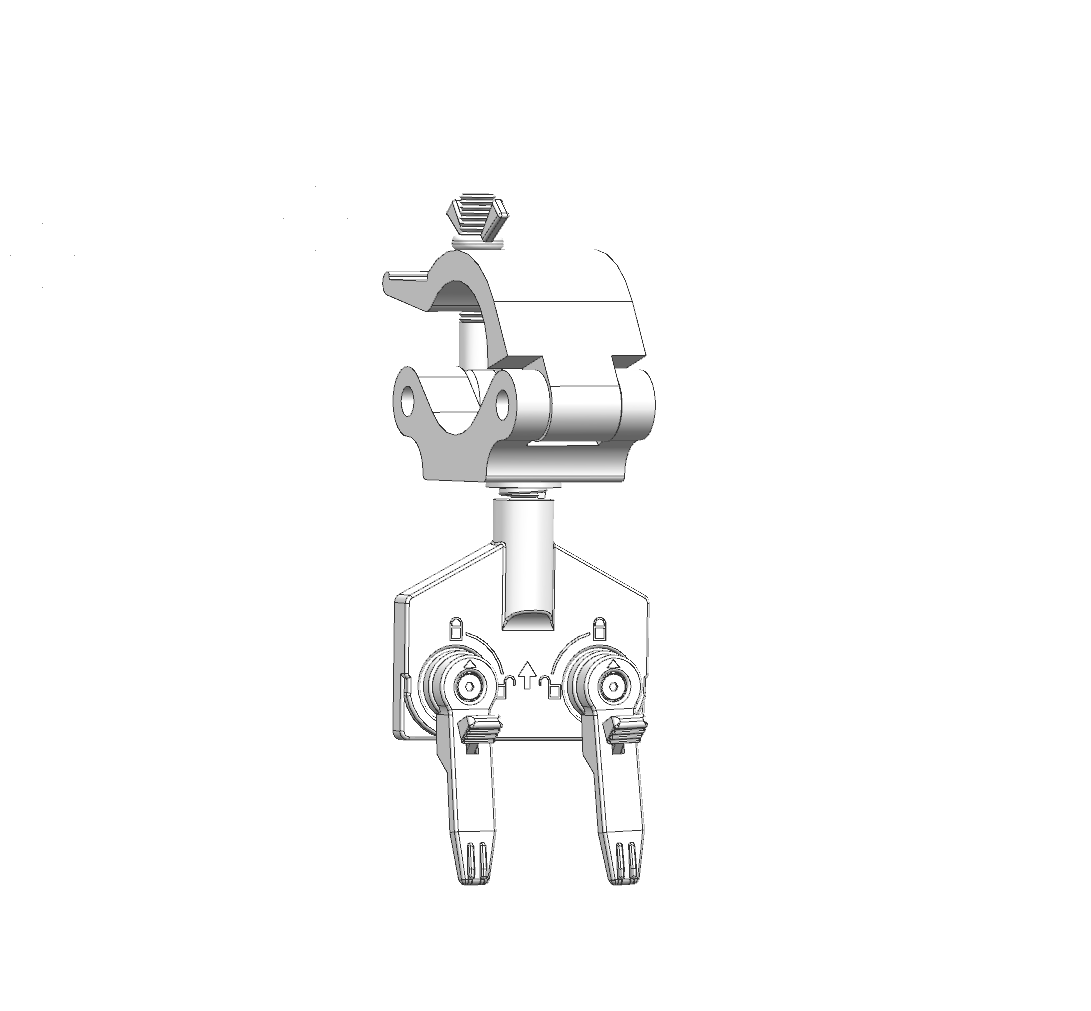

Hanging connection plate

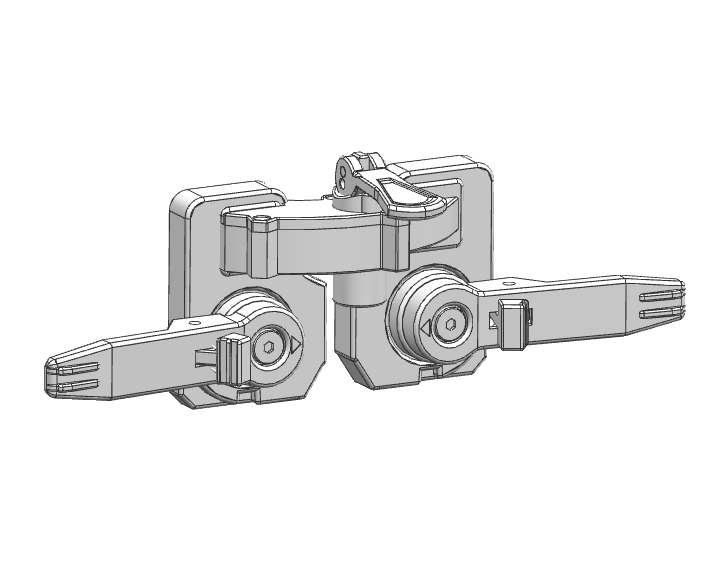

Curving connection plate

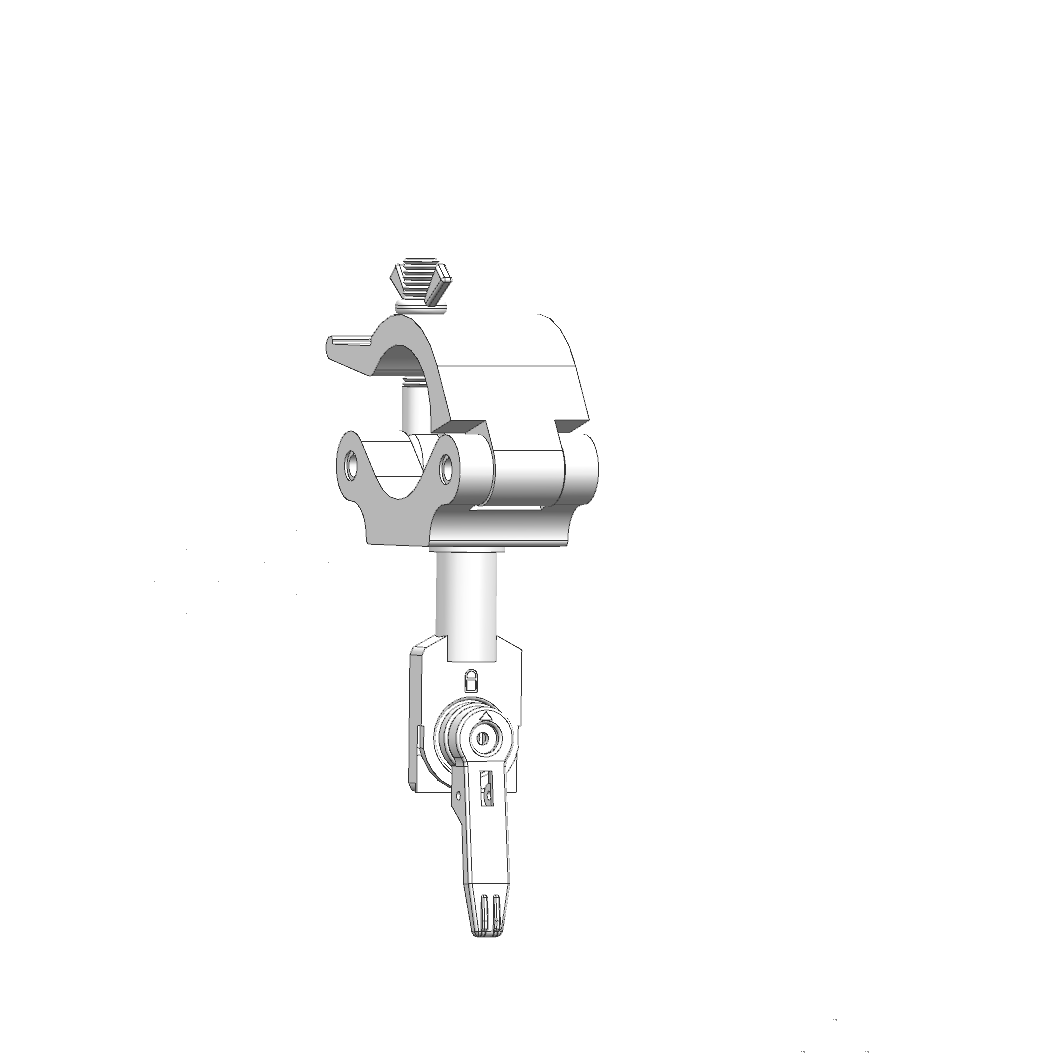

Half hanging connection plate
Half curving connection plate
Hanging curve connection plate
