RC-oL3.9
9kg
500x1000mm outdoor
Benefits Of Carbon Fiber Panels
  • Lighter
  • Thinner
  • Tougher
  • Faster
14KG
Average weight of 500*1000mm solid outdoor panel in the market
9kg
RC-oL3.9 500*1000mm outdoor panel

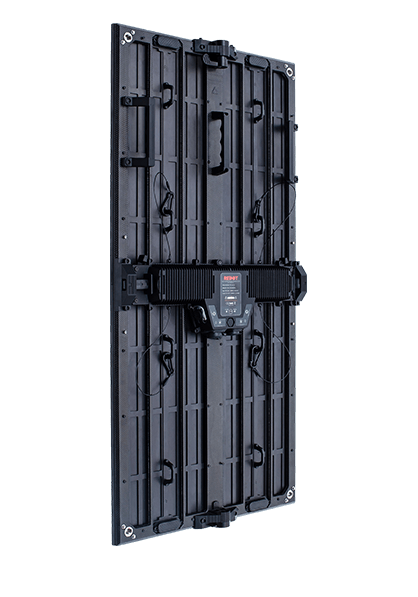

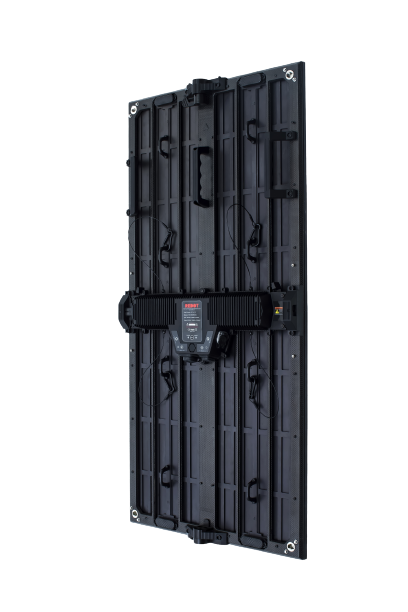

Ultralight Carbon Fiber
Led Display
  • Full Carbon Frame
  • Common Cathode
  • Modular Design
  • Curveable
  • 90°Corner

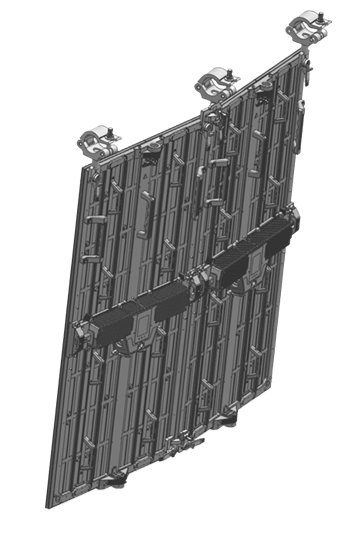

  • Full Touring System
Modular Design

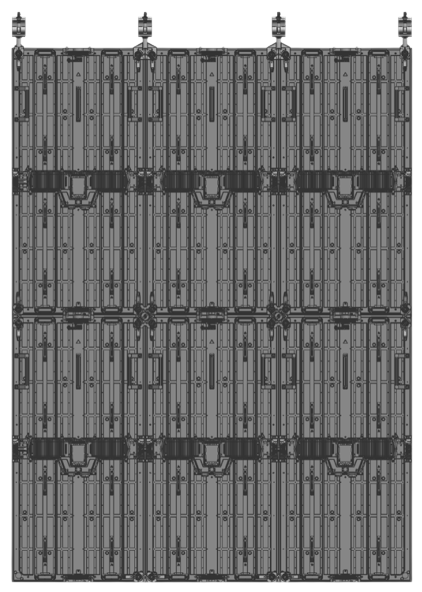

Straight Installation

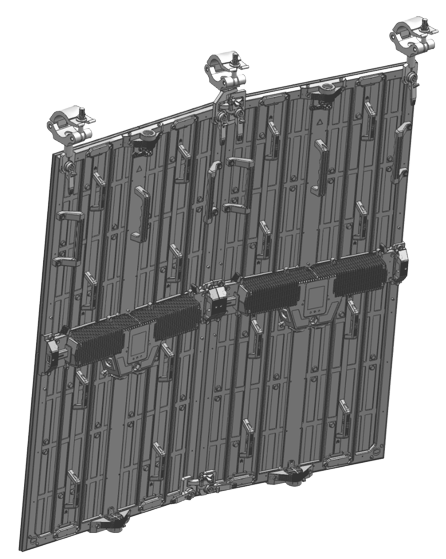

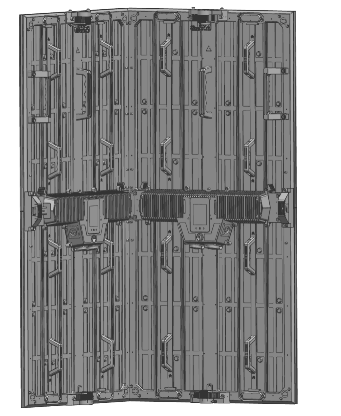

Curved Installation

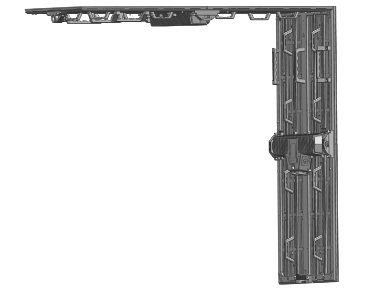

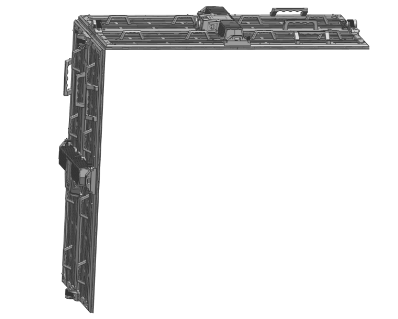

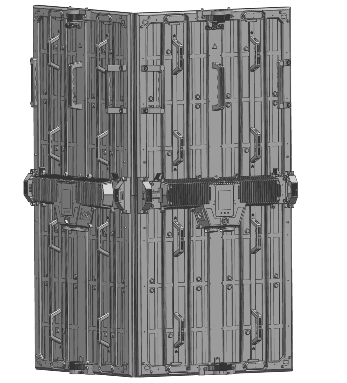

90 degrees Installation
Product parameters
  • LED configuration
  • 3in1 SMD RGB Common Cathode
  • Pixel Pitch
  • 3.91mm
  • Cabinet Resolution
  • 128x256
  • LED Cabinet Size(WxHxD)
  • 500x1000x66.3mm
  • Max. Brightness
  • 5,500nits
  • Cabinet Material
  • Carbon Fibe
  • Cabinet Weight
  • ≤9kg
  • Viewing Angle
  • 140°H/110°V half brightness point
  • Service Access
  • Front/ Rear
  • Transparency
  • Solid
  • Curving
  • + 10 or – 10°
  • IP Rate(Front&Rear)
  • IP65
  • Refresh Rate
  • 7680Hz
  • Power Consumption, Maximum (watts)
  • 283w/cabinet |566W/sqm
  • Power Consumption, Typical (watts)
  • 141.5w/cabinet |283W/sqm
  • Operating Temp/Humidity
  • -20°C～45°C | -4° to 113° F/ 10%～100%RH
  • Storage Temp/Humidity
  • -40°C～60°C | -40° to 140° F/ 10%～70%RH (non condensing)
  • Max. Hanging(Panels)
  • 15 panels with safety factor 11(indoor)
  • Compliance
  • CE/EMC/LVD
Accessories

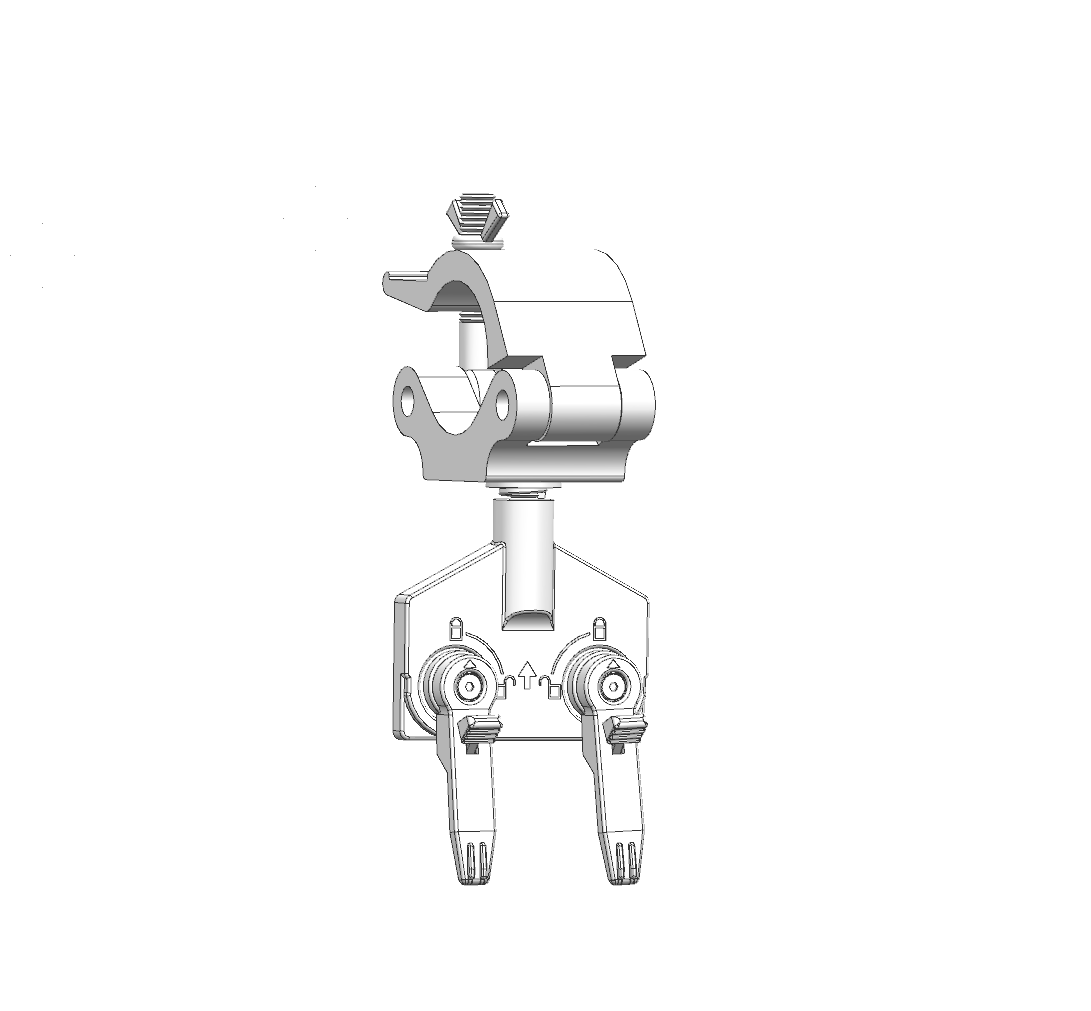

Hanging connection plate

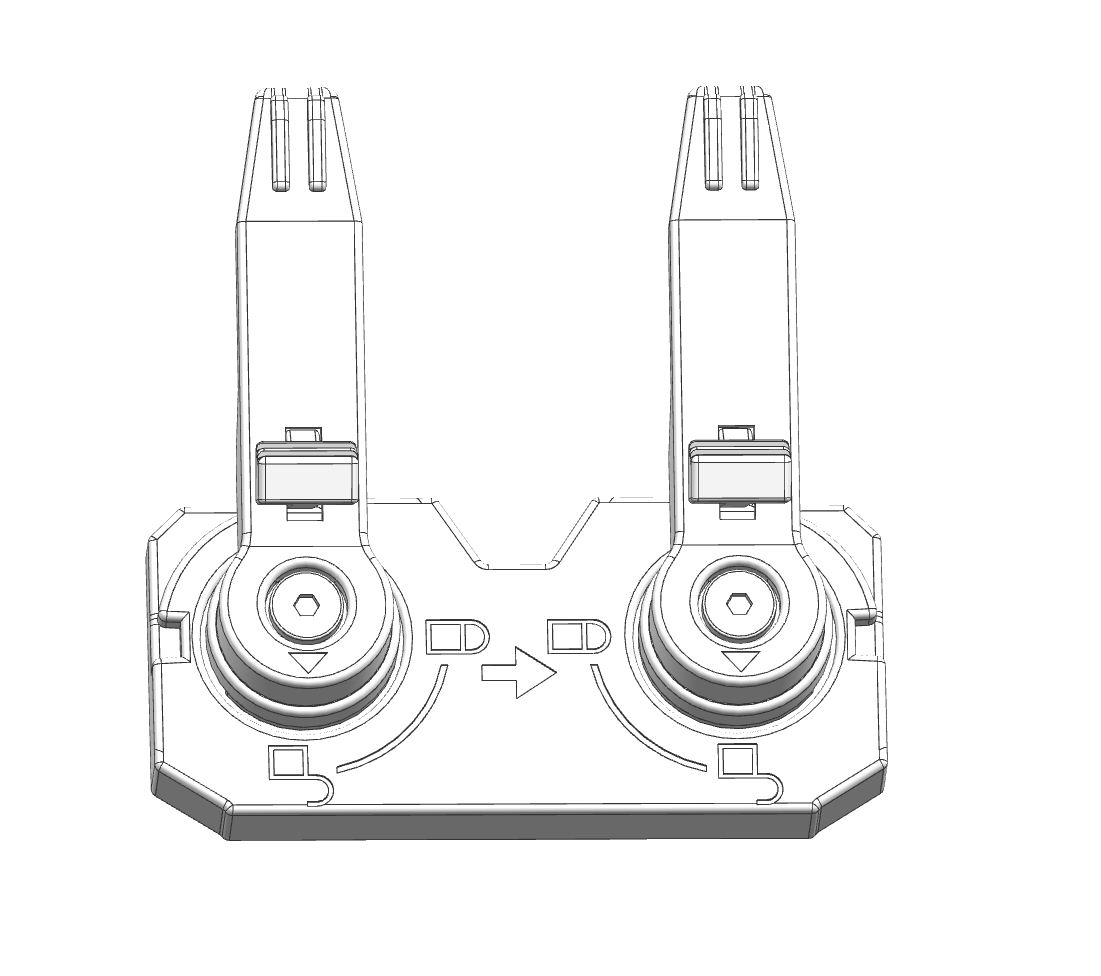

Half connection plate

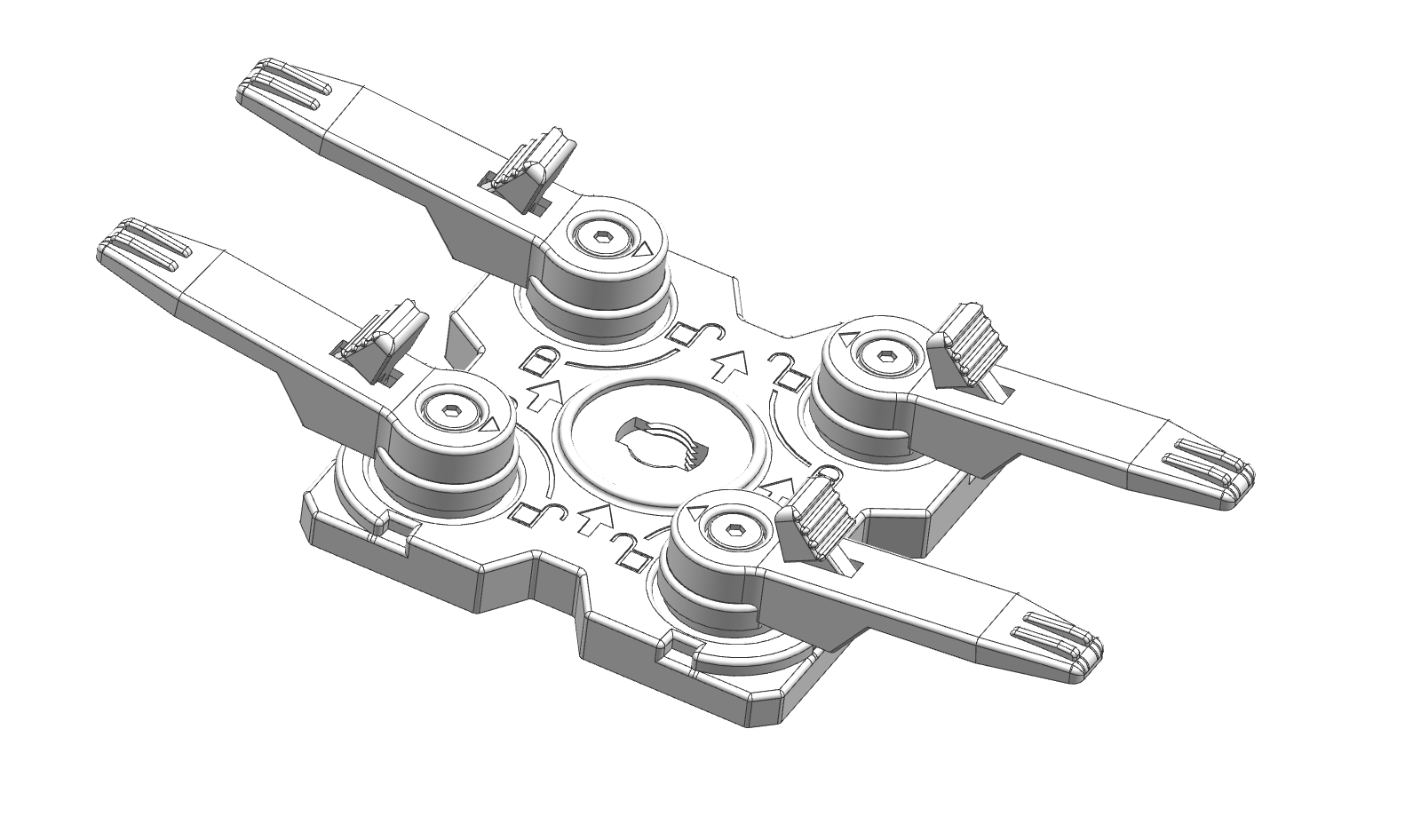

Connection plate
Half hanging connection plate
Half curving connection plate
Curving connection plate
Hanging curve connection plate
