Integrated Touring System

Allowable Wind Speed +20m/sec

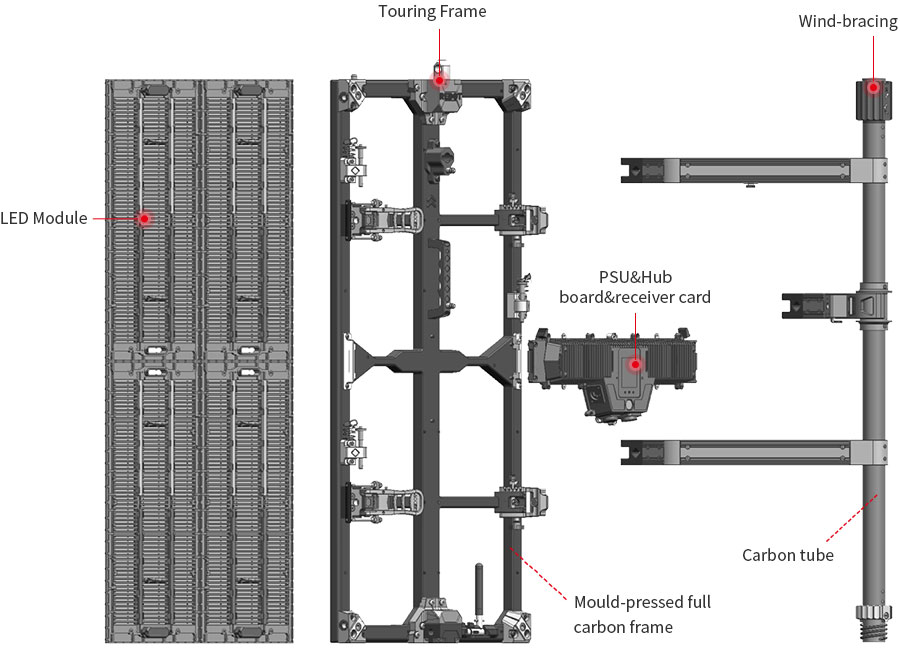

Moulded carbon frame is super light-weight only 13.2kg per panel with wind-bracing included

Offers both front and rear service access

Curving Capability convex 10˚~concave 10˚

Integrated touring 6.9mm

Modular Design

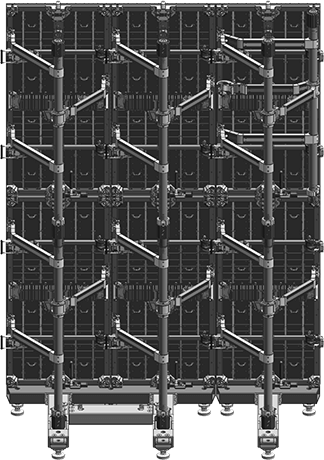

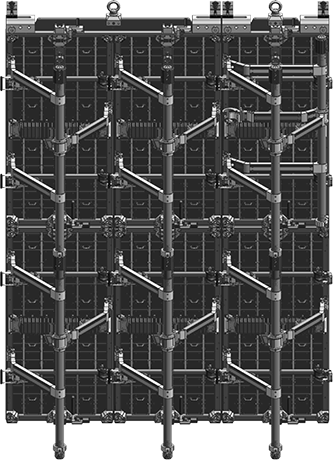

Hanging&Stacking With Wind-bracing

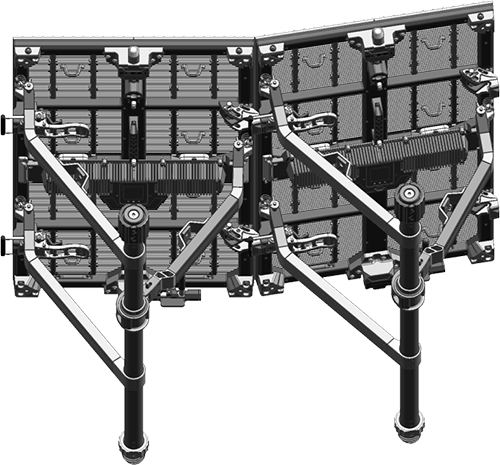

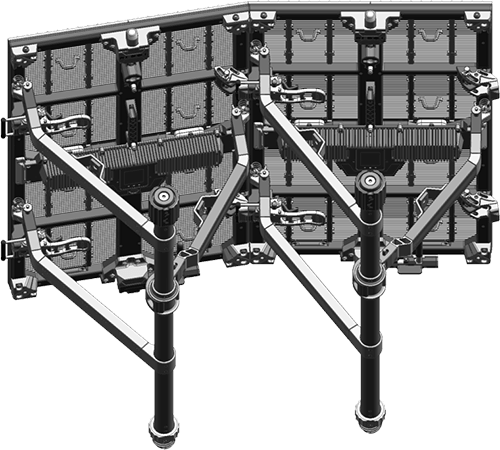

Curved Installation

Measurements

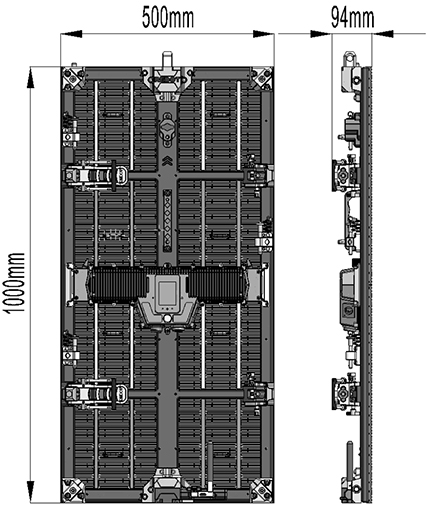

Integrated touring 6.9mm

Size: 500x1000x94mm

Weight: 10kg

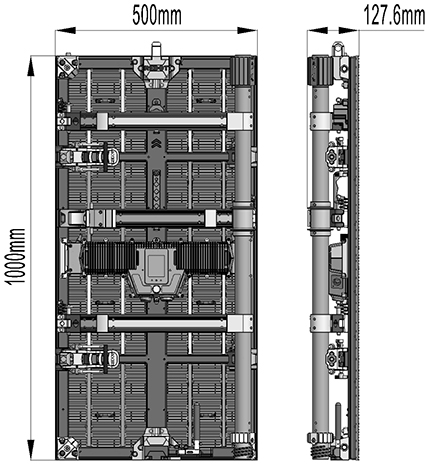

Integrated touring 6.9mm&wind-bracing collapsed

Size: 500x1000x127.6mm

Weight: 13.2kg

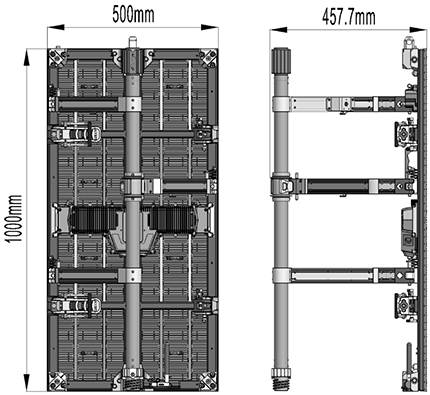

Integrated touring 6.9mm&wind-bracing deployed

Size: 500x1000x457.7mm

Weight: 13.2kg

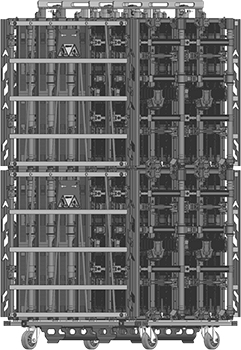

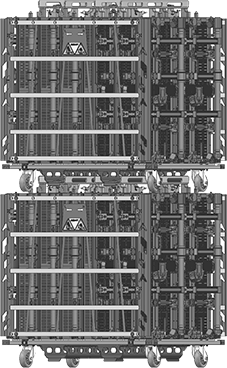

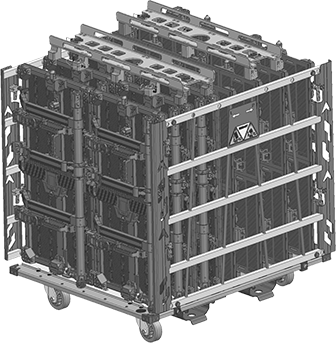

Dolly with 14/28 Panels Including
Touring Frame and Wind-Bracing

Accessories

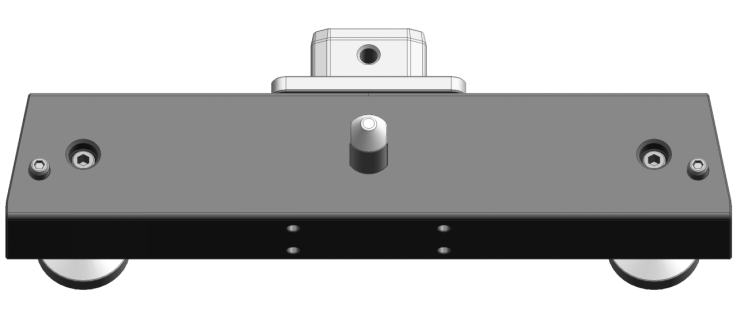

ski

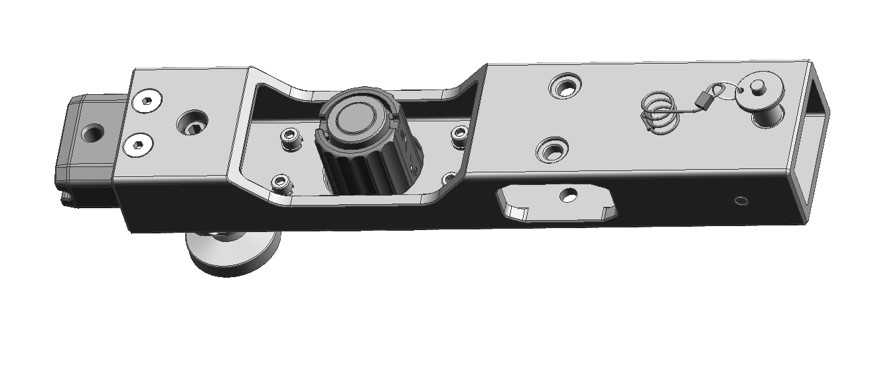

ski connector

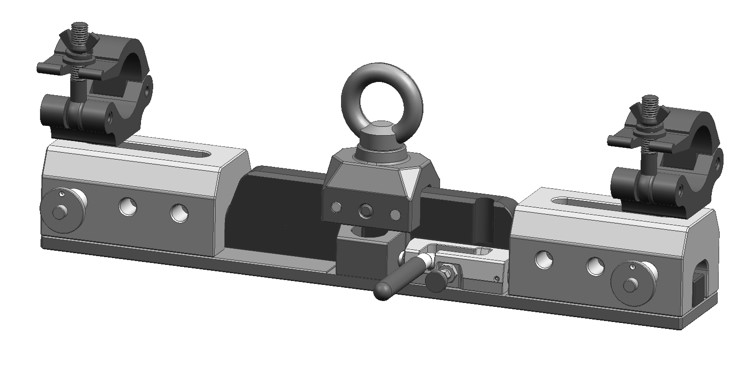

hanging bar

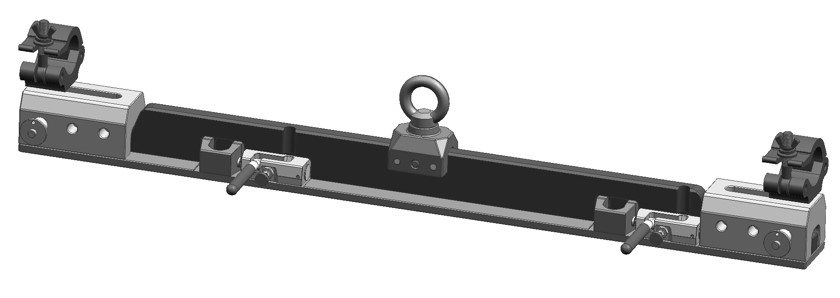

double hanging bar

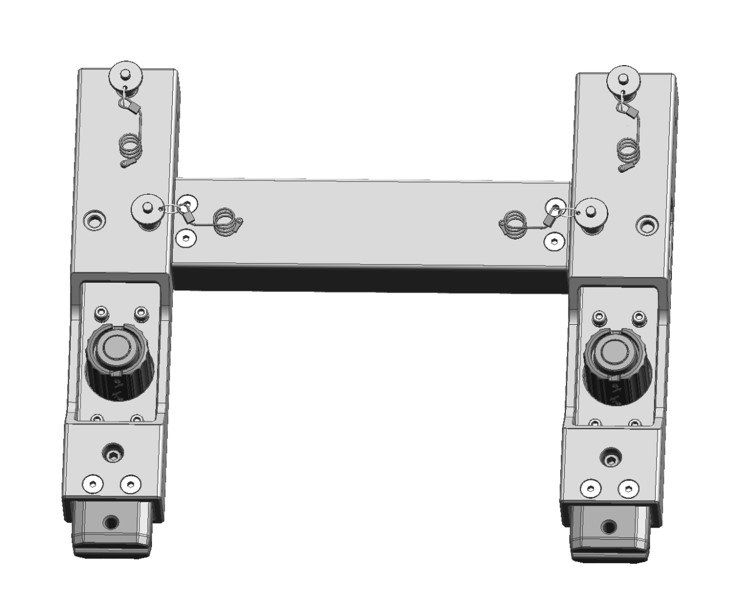

stacking bar

double stacking bar
