RC-M6.9
6.92kg
500x1000mm outdoor
Benefits Of Carbon Fiber Panels
Lighter
Thinner
Tougher
Faster
12KG
Average weight of 500*1000mm outdoor mesh panel in the market
6.92kg
RC-M6.9 500*1000mm outdoor mesh panel
Ultralight Carbon Fiber
Led Display
Full carbon fiber frame
Modular Design
Curveable
90°Corner
Front & Rear Maintenance
Full Touring System
Modular Design
LED Module
Carbon fiber Frame
Power Box

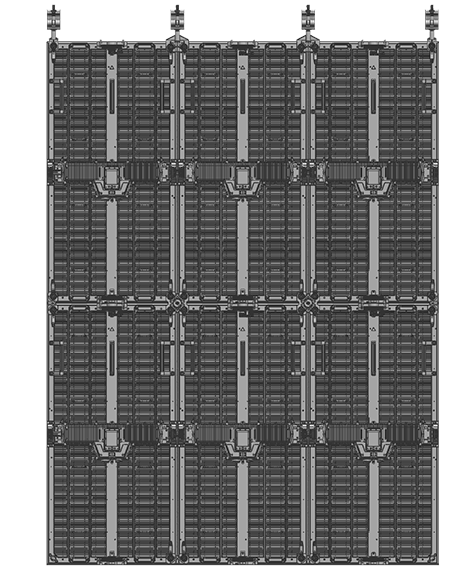

Straight Installation

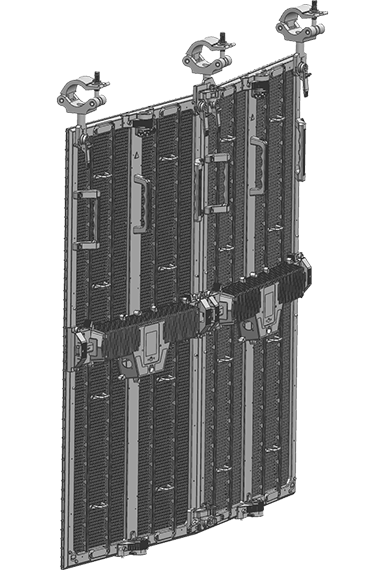

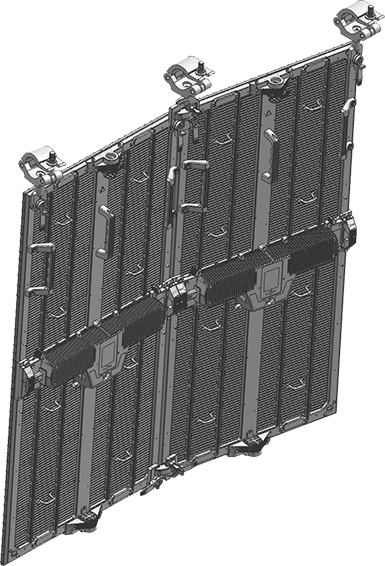

Curved Installation

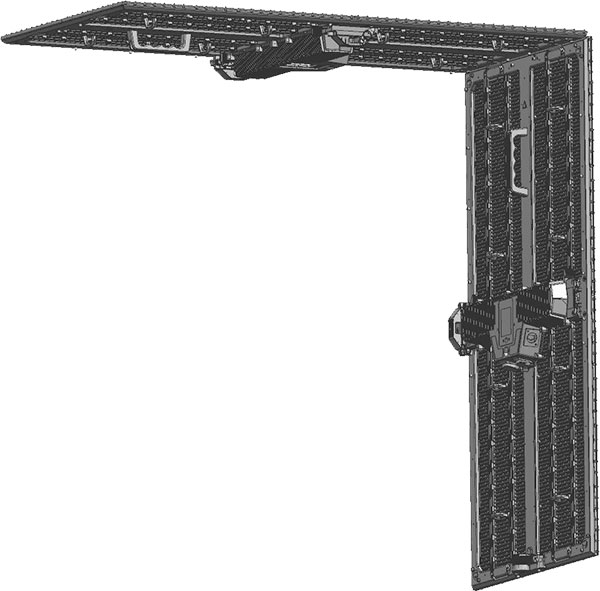

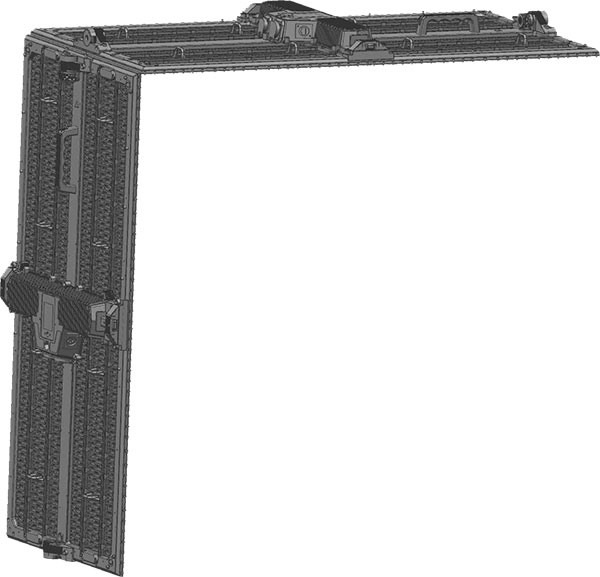

90 degrees Installation
Product parameters
LED configuration
3in1 SMD RGB
Pixel Pitch
6.94mm
Cabinet Resolution
72x144
LED Cabinet Size(WxHxD)
500x1000x63mm | 19.69x39.37x 2.48in
Max. Brightness Calibrated
5,000nits
Cabinet Material
Carbon Fiber
Cabinet Weight
≤6.92kg
Viewing Angle
140°H/110°V half brightness point
Service Access
Front/ Rear
Curving
+ 10 or – 10°
IP Rate(Front&Rear)
IP65
Refresh Rate
3840Hz
Power Consumption, Maximum (watts)
301w/cabinet |602W/sqm
Power Consumption, Typical (watts)
150.5w/cabinet |301W/sqm
Operating Temp/Humidity
-20°C～45°C | -4° to 113° F/ 10%～100%RH
Storage Temp/Humidity
-40°C～60°C | -40° to 140° F/ 10%～70%RH (non condensing)
Max. Hanging(Panels)
15 panels with safety factor 11(indoor)
Compliance
CE/EMC/LVD
Accessories

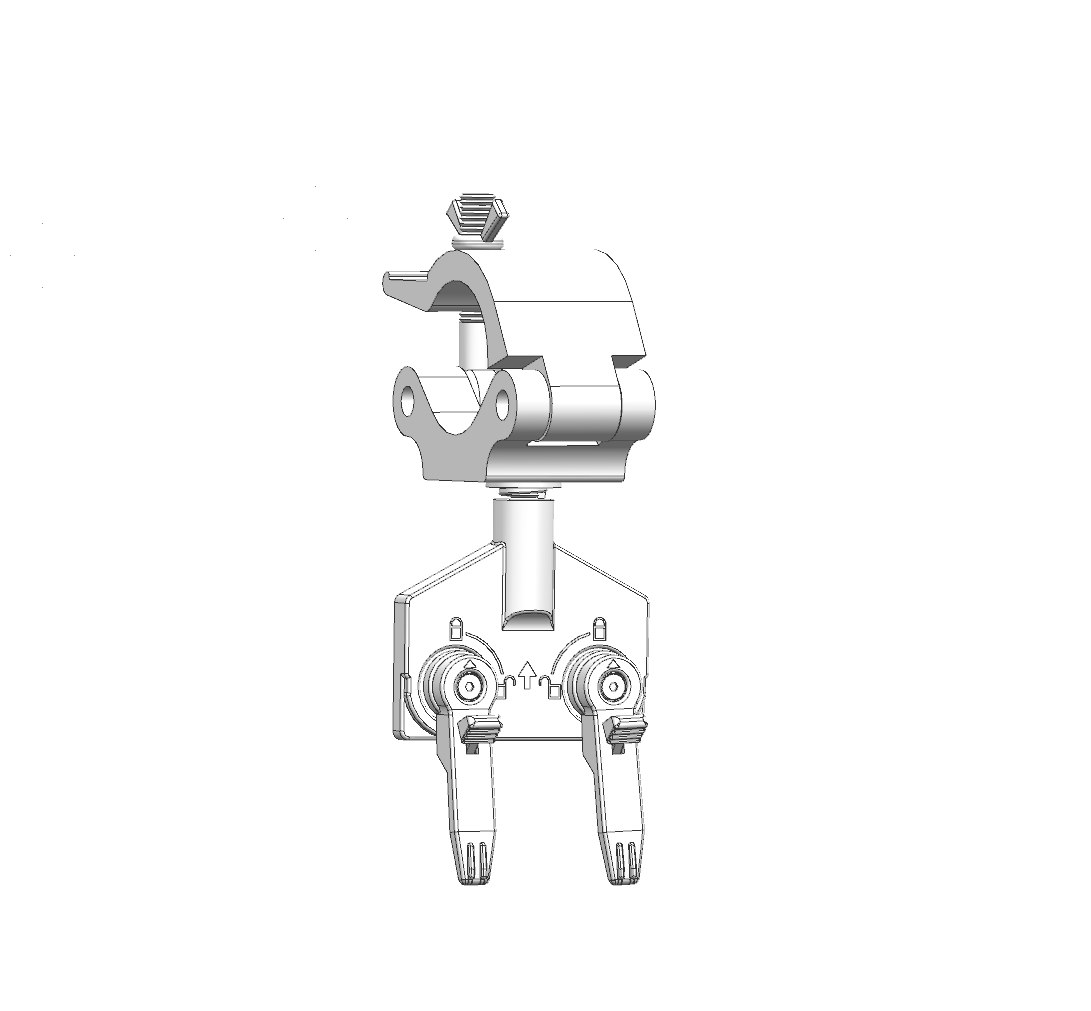

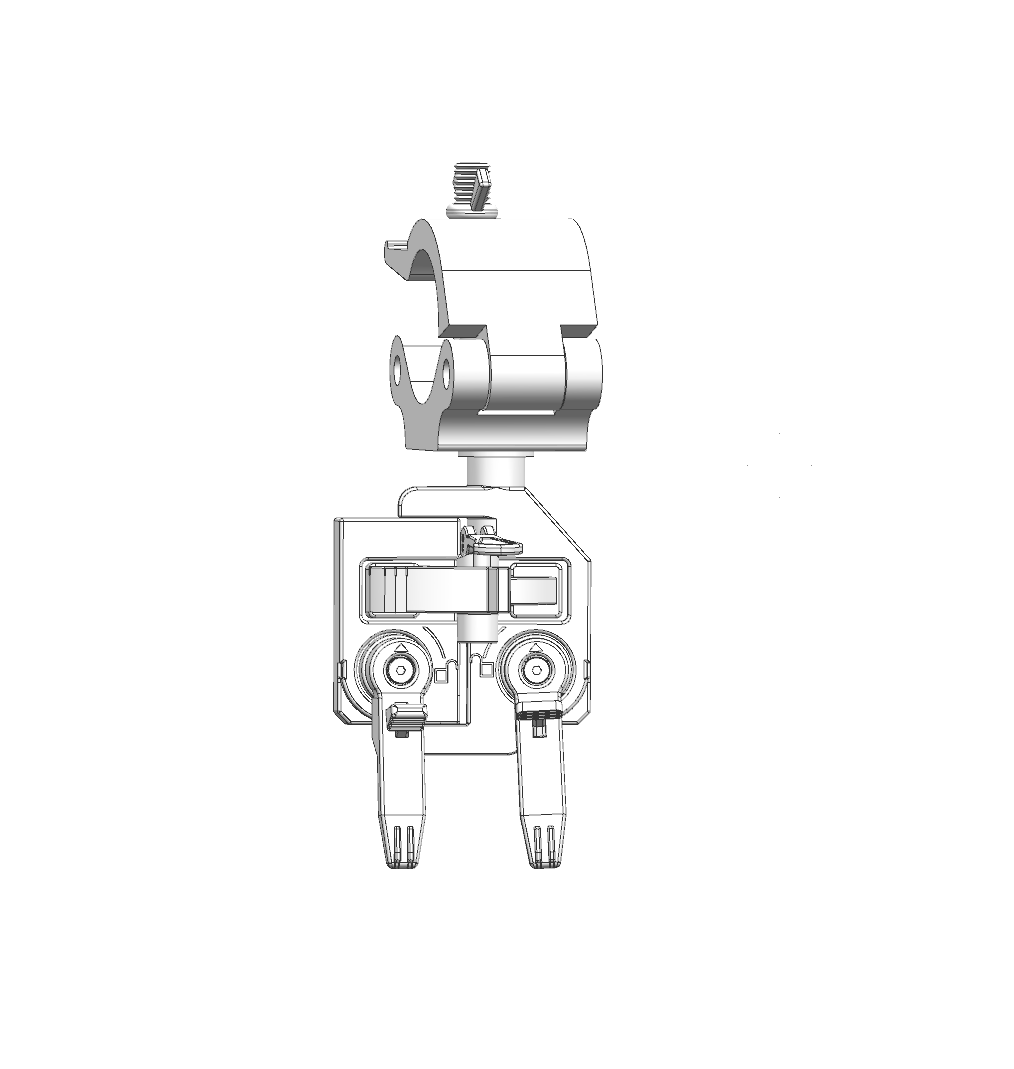

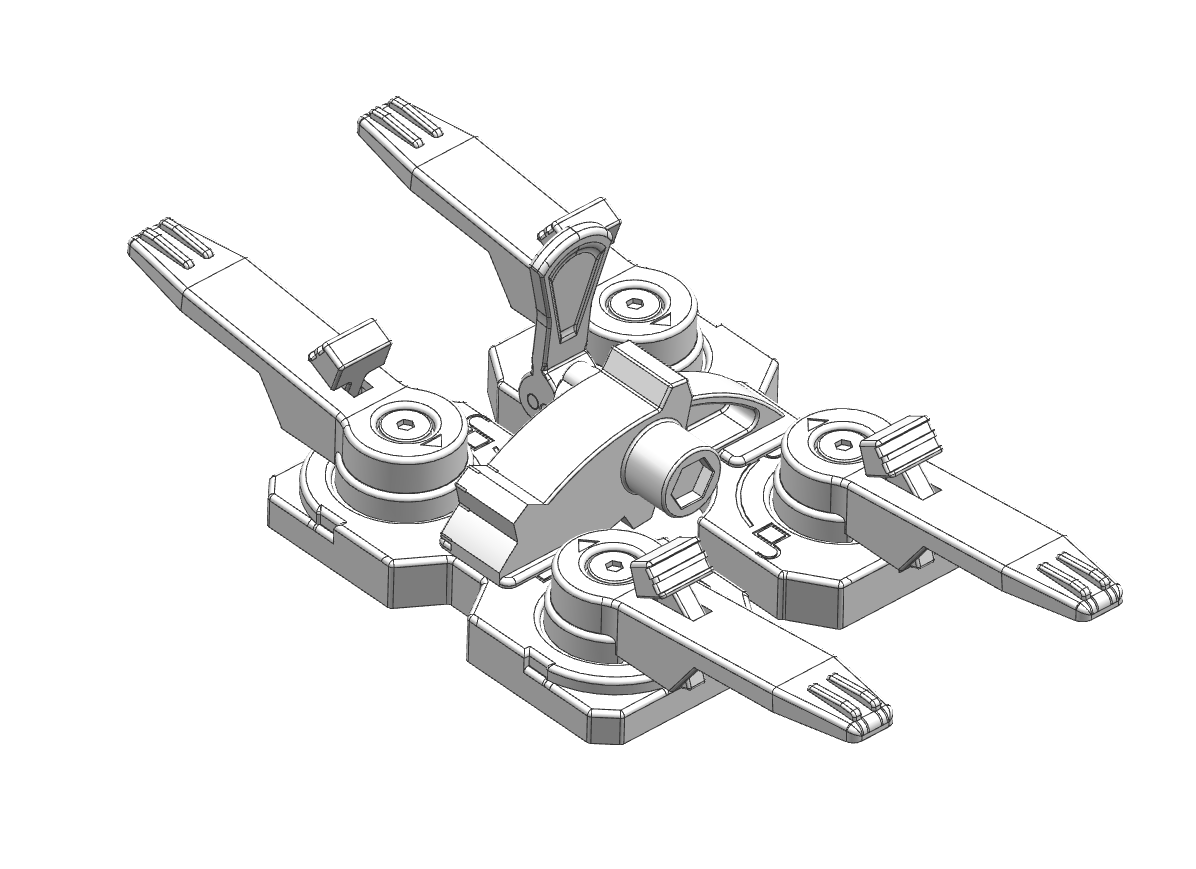

Hanging connection plate
Half connection plate

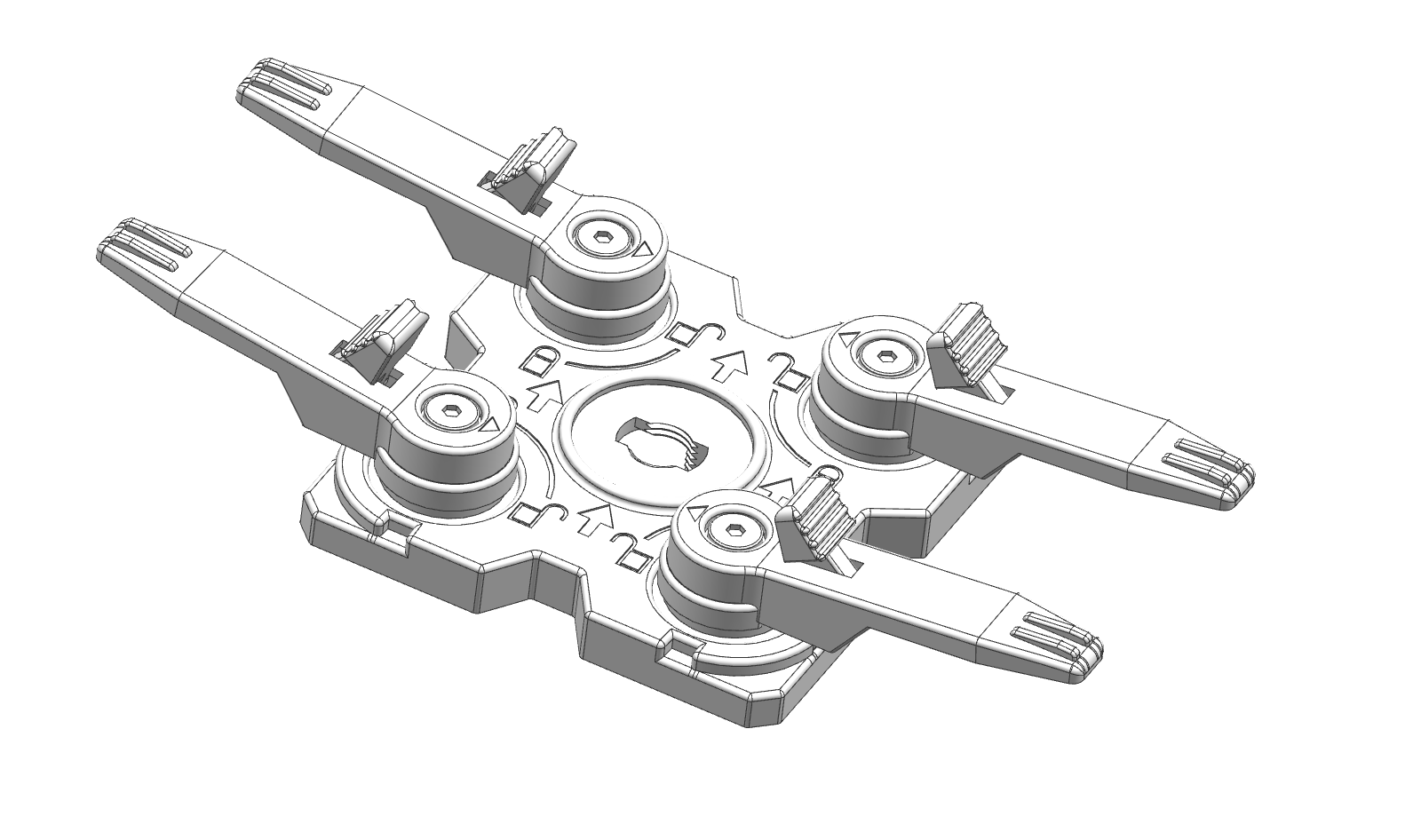

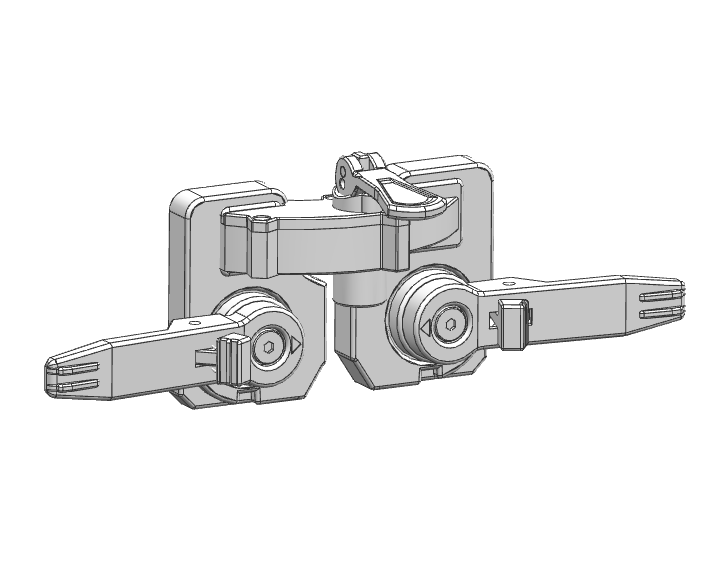

Connection plate

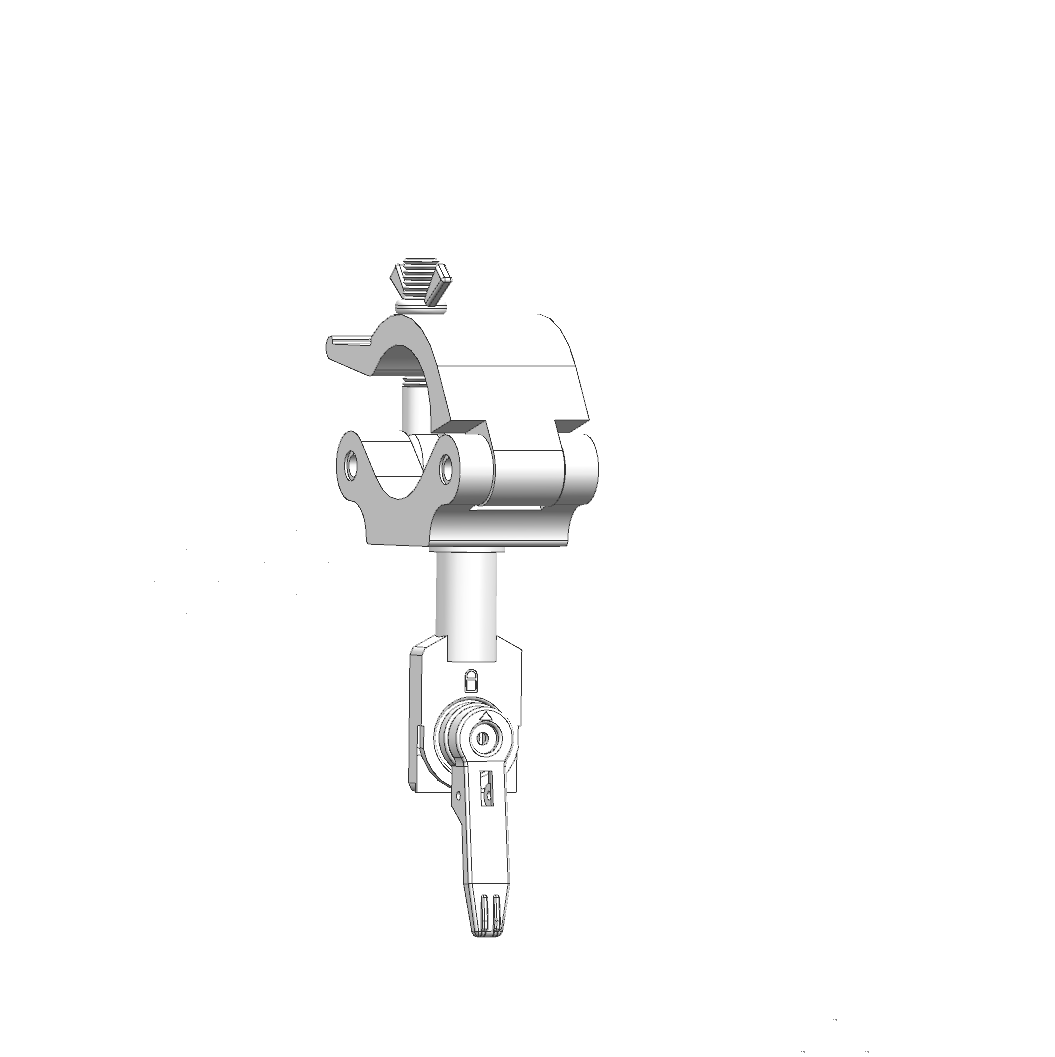

Half hanging connection plate
Half curve connection plate
Curve connection plate
Hanging curve connection plate
Hanging connection plate
Half connection plate
Connection plate
Half hanging connection plate
Half curve connection plate
Curve connection plate
Hanging curve connection plate
Hanging connection plate
Half connection plate
Connection plate
Half hanging connection plate
Half curve connection plate
Curve connection plate
Hanging curve connection plate
